型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚程 Head m |
轉(zhuǎn)速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
200WQ400-25-45 |
φ200 |
400 |
25 |
1450 |
45 |
75 |
920 |
|
200WQ380-28-45 |
φ200 |
380 |
28 |
1450 |
45 |
70 |
920 |
|
200WQ250-35-45 |
φ200 |
250 |
35 |
1450 |
45 |
69 |
920 |
|
200WQ400-30-55 |
φ200 |
400 |
30 |
1450 |
55 |
70 |
1000 |
|
200WQ250-40-55 |
φ200 |
250 |
40 |
1450 |
55 |
69 |
1000 |
|
200WQ350-40-75 |
φ200 |
350 |
40 |
1450 |
75 |
68 |
1050 |
說明：JYWQ型自動攪勻潛水排污泵性能參數(shù)等同WQ型潛水式排污泵(見上表)。外形尺寸見下頁。
Note:
the parameters of model JYWQ autostirring submersible
sewage pump are identical to those of model WQ submersible sewage pump (see the
table above), see the next page for the out-form dimensions.
|

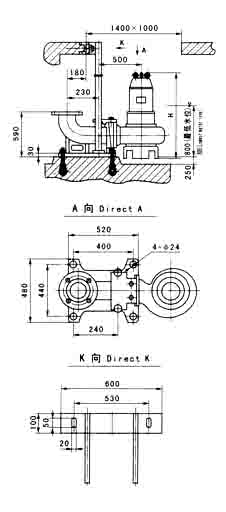

自動耦合式安裝
Auto-coupling
installation
|

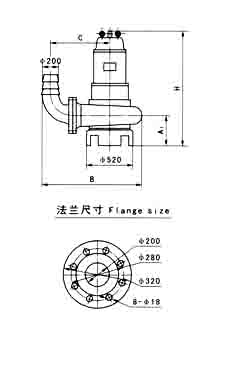

軟管移動式安裝
Hose
movable installation
|
注：JYWQ型自動攪勻排污泵其安裝尺寸參照WQ型潛水排污泵進行。
Note：refer to model WQ
submersible sewage pump for the installation dimensions of model JYWQ auto-stirring
sewage pump．
|
|
型號Model |
H |
A |
B |
C |
|
200WQ400-25-45 |
1700 |
525 |
1300 |
790 |
|
200WQ380-28-45 |
1700 |
525 |
1300 |
790 |
|
200WQ250-35-45 |
1700 |
525 |
1300 |
790 |
|
200WQ400-30-55 |
1750 |
530 |
1350 |
800 |
|
200WQ250-40-55 |
1700 |
525 |
1300 |
790 |
|
200WQ350-40-75 |
1750 |
530 |
1350 |
800 |
