型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚程 Head m |
轉速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
200WQ360-6-11 |
φ200 |
360 |
6 |
1450 |
11 |
72 |
450 |
|
200WQ300-7-11 |
φ200 |
300 |
7 |
1450 |
11 |
73 |
450 |
|
200WQ400-7-15 |
φ200 |
400 |
7 |
1450 |
15 |
78 |
480 |
|
200WQ250-11-15 |
φ200 |
250 |
11 |
1450 |
15 |
74 |
480 |
說明：JYWQ型自動攪勻潛水排污泵性能參數等同WQ型潛水式排污泵(見上表)。外形尺寸見下頁。
Note：the parameters of model JYWQ autostirring submersible sewage pump are identical to those of model WQ submersible sewage pump(see the table above)，see the next page for the out-form dimensions． |

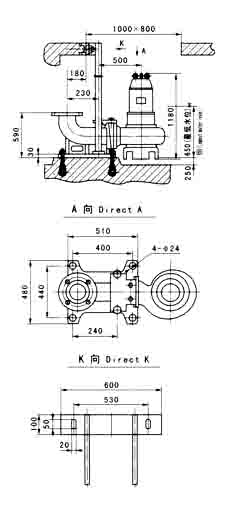

自動耦合式安裝
Auto—coupling
installation
|

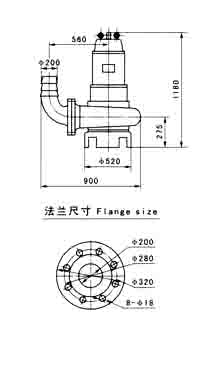

軟管移動式安裝
Hose
movable installation
|
注：JYWQ型自動攪勻排污泵其安裝尺寸參照WQ型潛水排污泵進行。
Note：refer to model WQ
submersible sewage pump for the installation dimensions of model JYWQ auto-stirring
sewage pump
|
|
型號Model |
H |
A |
B |
C |
|
200WQ360-6-11 |
1200 |
500 |
1200 |
780 |
|
200WQ300-7-11 |
1200 |
500 |
1200 |
780 |
|
200WQ400-7-15 |
1350 |
530 |
1300 |
850 |
|
200WQ250-11-15 |
1350 |
530 |
1300 |
850 |
